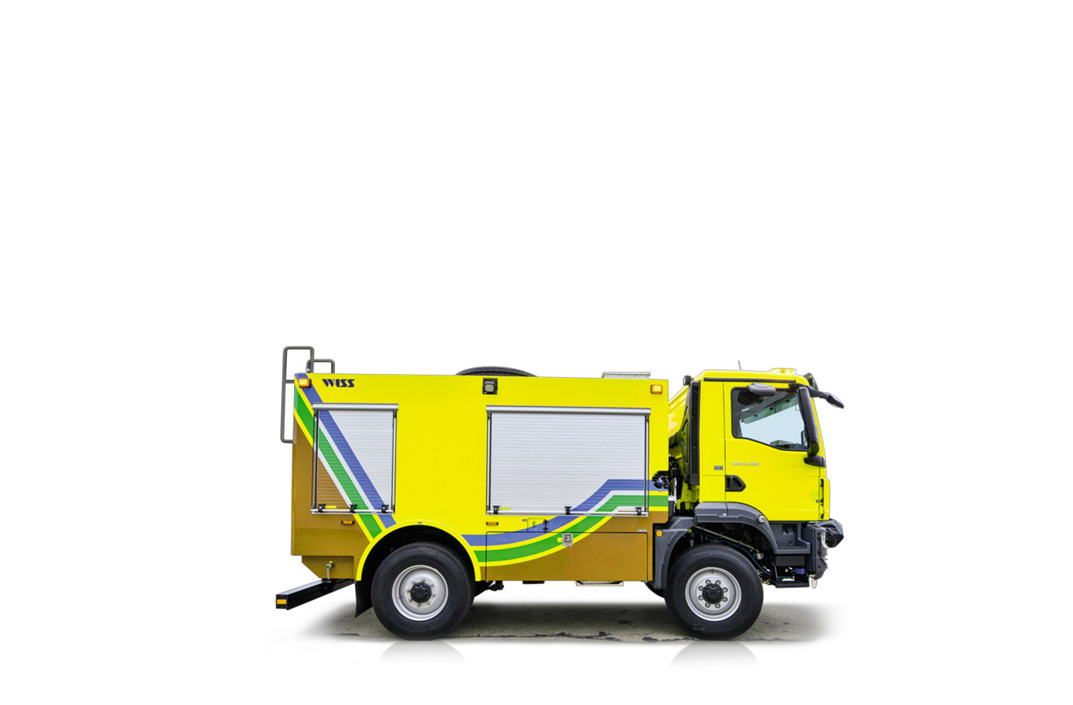

The vehicle is based on the MAN 13.290 4x4 BL CH model equipped with a 290 HP (213 kW) engine with automatic transmission and 4x4 drive with a 3250 mm wheelbase. The vehicle has a differentiated suspension system: the front is equipped with mechanical, reinforced components, while the rear has a pneumatic system, providing optimal stability and off-road capabilities even when fully loaded.
The single two-door cabin accommodates three firefighters (1+2) ensuring comfort and safety for the crew during operations. The ergonomic arrangement of control elements and the use of modern technologies enables convenient and intuitive vehicle operation in all operational conditions.
The superstructure made of GRP polyester composite contains 5 functional equipment lockers (2+2+1) providing optimal access to equipment. The construction material used guarantees high durability while maintaining corrosion resistance, low weight, and ease of maintenance.
The vehicle is equipped with a Ruberg EH30 truck-mounted pump with a high output of 3000 l/min at 10 bar pressure and 250 l/min at 40 bar pressure. The two-stage pumping system enables effective firefighting operations both in low-pressure mode for high flow rates and in high-pressure mode for precise and economical operations.
The vehicle is equipped with a substantial 3000-liter water tank and a 300-liter foam agent tank. This configuration allows for extended firefighting operations using both water and foam without the need for frequent replenishment of extinguishing agents.
The vehicle with a gross vehicle weight (GVW) of approximately 11,900 kg and dimensions of 6530 mm x 2500 mm x 3200 mm (length x width x height) combines compactness with adequate usable space. These proportions provide good maneuverability in confined spaces while maintaining significant tank capacity and space for specialized equipment.
