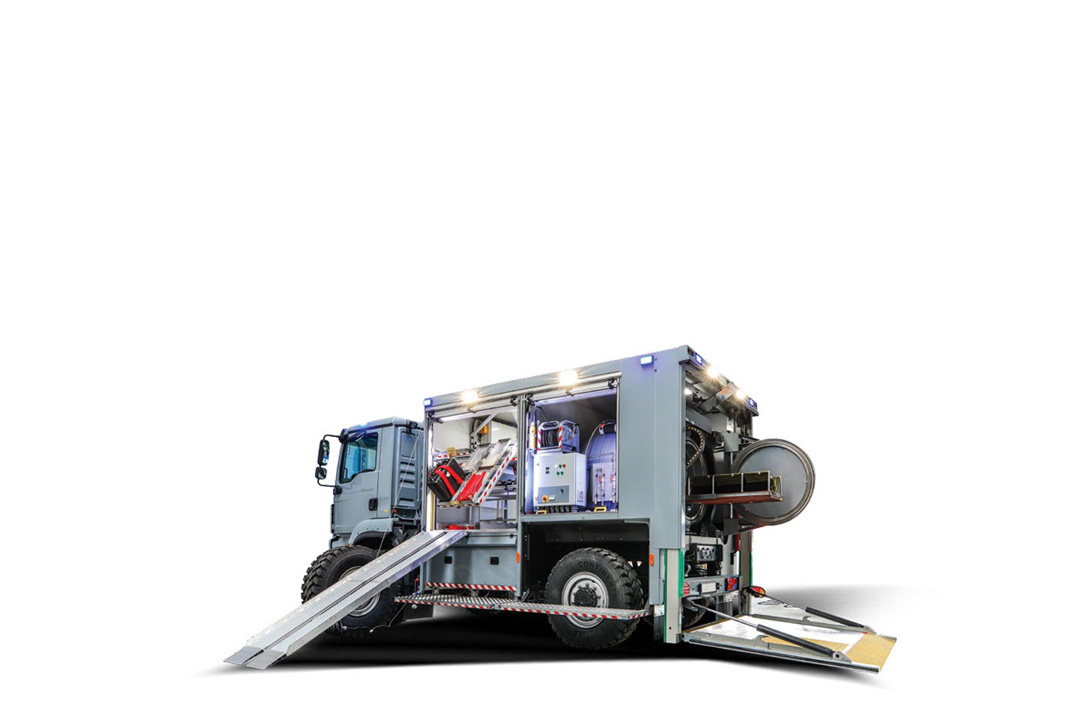

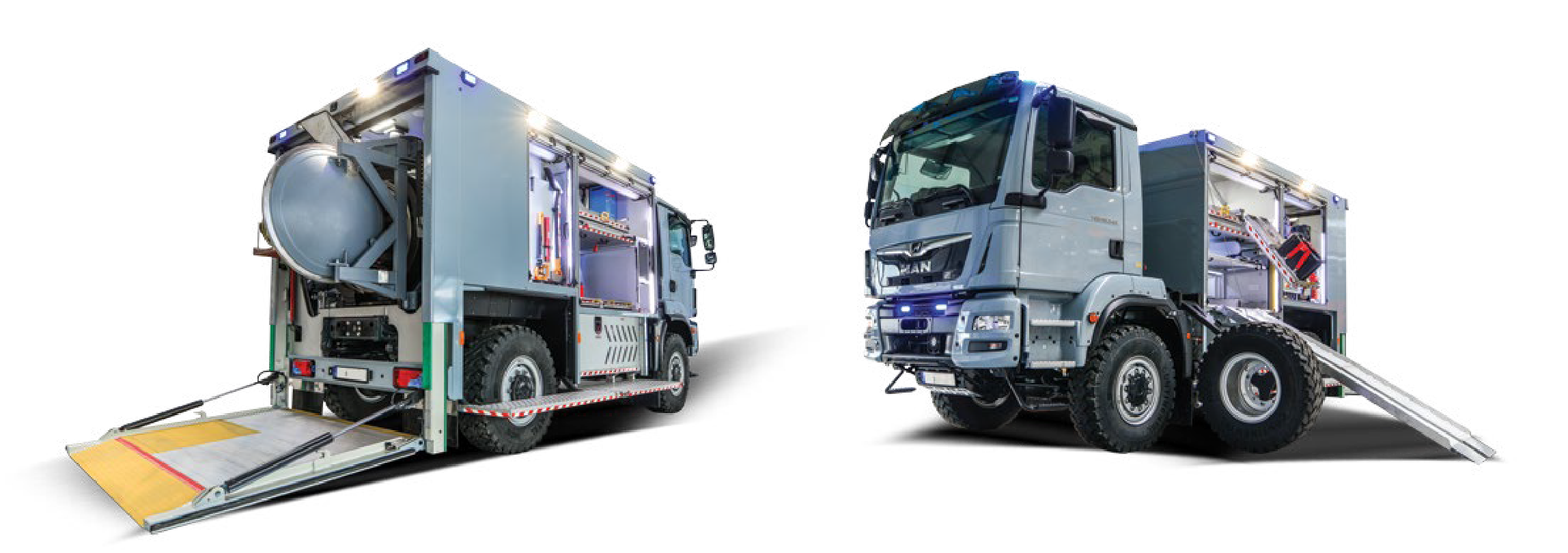

EXPLOSIVE CARRIER VEHICLE (WITH GAS-TIGHT CONTAINER)

Chassis

MAN TGM 18.320 (4x4) BB with 320 HP (235 kW) power, automatic TipMatic 12 gearbox and off-road 4x4 drive. Construction adapted to difficult terrain conditions.

CAB

One-unit, two-door with 1+1+1 crew. Adapted for transporting a three-person crew.

Superstructure

Metal, divided into 3 parts: equipment compartment, technical/storage compartment and operational compartment with explosion proof container. Hydraulic loading lift in the rear part of the superstructure with load capacity up to 1000 kg

Equipment

Vehicle equipped with explosion proof, gas-tight container, resistant to detonation of 5 kg TNT equivalent. Features set for taking samples from a gas-tight container and set for emergency opening of the container. Adapted to work in temperatures from -30 to +50°C (certified by WITPiS) and to transport dangerous goods in accordance with ADR type EXIII regulations.

-

-

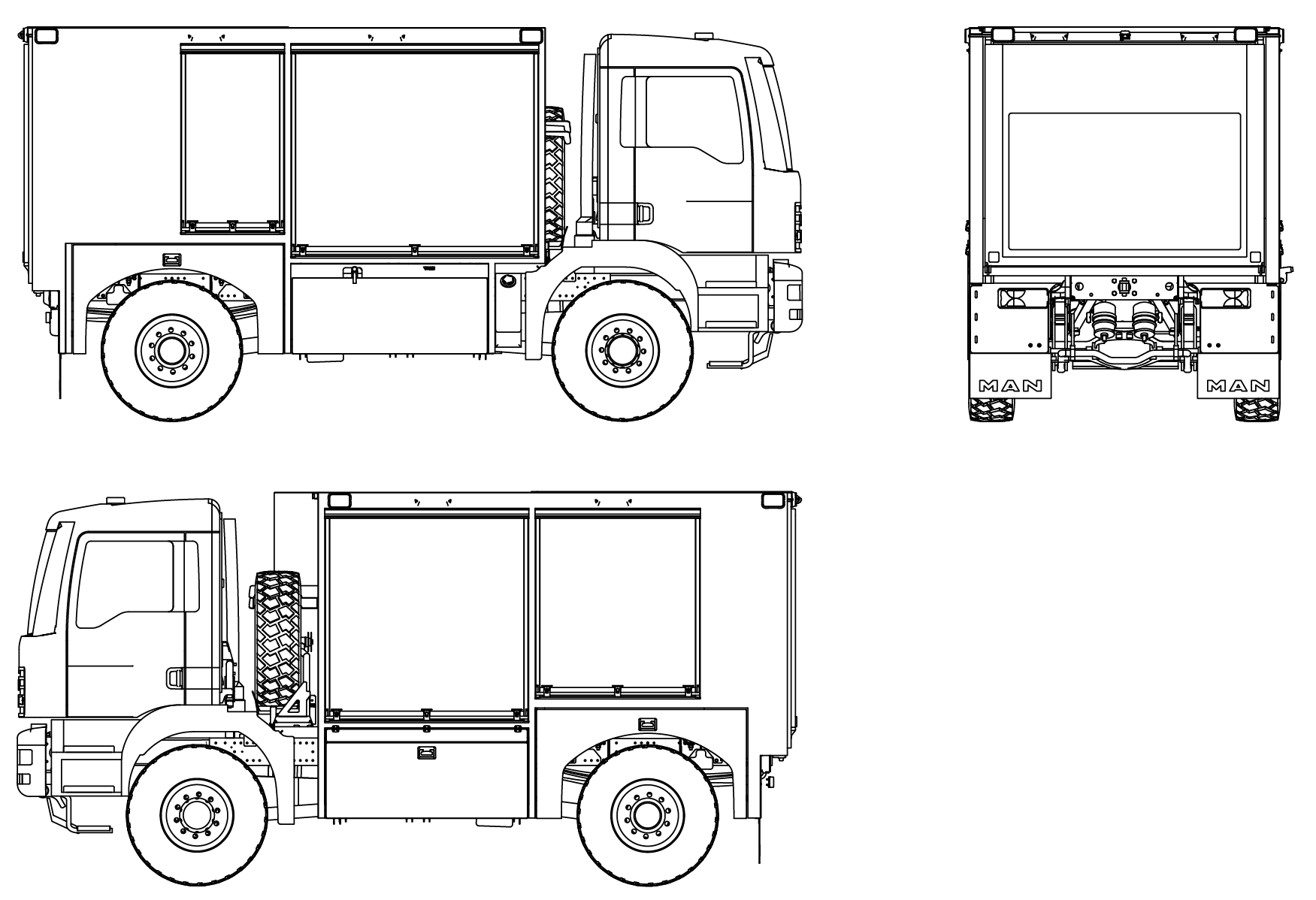

Mass and dimensions

GVW approximately 16,000 kg, with dimensions 6300 mm x 2550 mm x 3162 mm.
